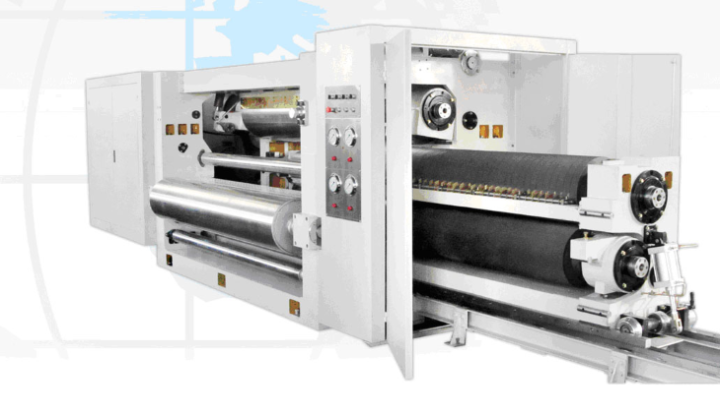

※SF-405MPositive pressure Single Facer
※Structural features：
★Design speed：250m/min。
★Effective width：2200mm。
★Main shocked roll：￠405mm（According flute differ），Pressure roller￠495mm，Preheat roll￠420mm。
★Using positive pressure emitter, low heat loss, the core paper uniformly compressed and attached to the corrugating roll surface, the corrugated better shape, because the pressure evenly, corrugated top better, evenly coated with glue, make the situation better fit the single-faced corrugated。
★Quick roll for 15 minutes to replace the corrugating trolley trailer containing the entire set of corrugating hydraulic motor, fed into the machine and hydraulic systems to be locked, fixed to the machine base, just a few buttons to switch quickly and easily complete replacement corrugating。
★Main and auxiliary corrugating cylinder using 48CrMo high quality alloy steel, heat treatment, surface treatment after grinding tungsten carbide coating, surface hardness HV1200 degrees above。
★Corrugated Roller, pressure roller and other uses hydraulic control system with high stability, but also has the effect of controlling the buffer gas pressure, the gap between the roller adjustment with electric control。
★Quantity of cement is controlled by electric adjustment, independent operation when tapping electric apparatus, coating systems in the host to stop, prevent the glue dried up。
★Mobile on the dispensing system, in addition to easy cleaning, the more conducive to maintenance and repair work。
★Simple operation control system, touch screen interface, with color drawing shows the operation status, function selection, fault indication, parameter setting, etc. can be excluded and exhibit this machine fully functional, easy to operate, user-friendly。
★Built-in pre-conditioner with spray system, regulating temperature and moisture core paper。
★Main and secondary corrugating and pressure roller bearings are used in high temperature grease to ensure bearing life running smoothly。
※General Technical Data：
1、Working width：2200mm
2、Operating direction: left-or right position (determined in accordance with the customer's facility)
3、Design speed：250m/min
4、Temperature Range：160—200℃
5、Gas supply：0.4—0.9Mpa
6、Steam pressure：0.8—1.3Mpa
7、Hydraulic system parameters：3—10Mpa
8、Flute-type (UV type or type UVV)：
※Roll diameter class parameters：
1、The corrugating roll diameter： ￠350mm Corrugated roll diameter：￠405mm
2、Pressure roll diameter： ￠495mm Adhesive roll diameter：￠268mm
3、Set paste roll diameter： ￠155mm Preheater diameter：￠420mm
※Power of the motor parameters：
1、Main frequency drive motor：45KW Rated voltage：380V 50Hz Continuous (S1) Work standard
2、Hair motor：18.5KW Rated voltage：380V 50Hz Continuous (S1) Work standard
3、The gel reducer：100W Rated voltage：380V 50Hz Continuous (S1) Work standard
4、The gel gap motor：250W Rated voltage：380V 50Hz Continuous (S1) Work standard
5、Plastic pump motor： 2.2KW Rated voltage：380V 50Hz Continuous (S1) Work standard
