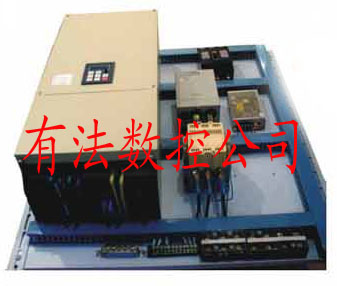

YOUFA Numerial Control Dedicated wheel cut smart Servo Drives YFSKS-R

YFSKS-R Series Wheel Cut Dedicated Servo Drives contains automatic wheel cut Control program. As per the work

piece length or feed speed, it automatically change the tool rotation status during cutting in order to keep the same speed

and same angle in synchronization interval for that short while. The cutting length can be arbitrarily set, and the automatically computerized that unlike the general Use on cam control system. It is applicable to a variety of corrugated cardboard cross cut machine, horizontal and vertical packaging machine, Color printing presses and other equipment; With stringed / arc correction function, it can be used for thicker material cutting board equipment, such as steel Plate round cut system; it can be used as cursor tracing suitable for the cutting for a fixed and positioned requirements in printing industry.

Technical Features

◆Combination of Motion controller and servo drive (Motion Control + Servo Orive).

◆It can directly control the brushless servo (Brush-Less) or induction servo induction motors respectively..

◆Contains a high-performance 32-bit microprocessors and high-speed computing 125us dynamic loop.

◆Length of the data set as eight number of f 0-99,999.999) that can be accurate up to 1 um level.

◆Can accept maximum measured high speed length of 400Kpps signal (A / B phase.cw / ccw, CK DIR, etc. signal applicable).

◆Automatically track mainline feed rate and calculate the amount of the pre-S curve acceleration figure.

◆In the s-curve acceleration process, it can do torque compensation and can be quickly synchronized and reduce

tracking error.

◆Can trace Print Mark and automatically corrects cutting length.

◆Providing Mark-Window settings, enhanced Mark identification capability.

◆Five groups of auxiliary electronic cam output can be set at any angle (response rate of 52ms).

◆Set two length data, and change settings or switch to another set of data in the operation.

◆Simulation function for the main line feed speed input to facilitate the use of test engineers.

◆With analog output, pulse signals can be converted mainline feed rate into the O-10V input voltage output.

◆With automatic length switch function in Humanization way.

◆With RS-485 interface and with ModBUS (RTU) communication protocol that can be set directly by man-to- machine interface or by PC, PLC communication.

◆To facilitate the setting of length data and various kinds of operation parameters.

◆Actively calculating of each kind operating data in order to monitor the system in operation.

Wheel Cut System advantages

◆Writing motion controller as software and integrated in the servo drives, it makes the failure of motion controllers to zero.

◆High dynamic response.

◆Easily achieve a variety of high-precision, high-speed cutting.

◆Servo drive contains high-performance 32-bit microprocessor and 125us dynamic high-speed computing loop.

◆Can trace Print Mark and automatically corrects cutting length.

◆YFSKS-R servo drives can drive permanent magnet synchronous motors and asynchronous motors for its high

adaptability. Therefore, the whole system becomes simple, efficient and reliable and it reduces production costs and maintenance costs.
